What is the tolerance of outer diameter for BKS Honed Tubes?
May 21, 2026
In the realm of industrial manufacturing, precision is paramount. When it comes to BKS Honed Tubes, one of the most critical aspects that manufacturers and end - users alike must understand is the tolerance of the outer diameter. As a trusted supplier of BKS Honed Tubes, I am here to shed light on this important topic.
Understanding the Basics of BKS Honed Tubes
BKS Honed Tubes are a type of high - precision tubes that are widely used in various industries, such as hydraulic systems, automotive, and construction. These tubes are manufactured through a honing process, which involves the use of abrasive stones to remove small amounts of material from the inner surface of the tube, resulting in a smooth and accurate bore.
The outer diameter of BKS Honed Tubes is equally important as the inner bore. It plays a crucial role in determining the tube's fit within a larger assembly, its structural integrity, and its performance under different operating conditions. For example, in a hydraulic cylinder, the outer diameter of the honed tube must be precisely controlled to ensure a proper seal and efficient operation.
Factors Affecting the Outer Diameter Tolerance
Several factors can influence the tolerance of the outer diameter of BKS Honed Tubes.
Manufacturing Process
The initial manufacturing of the tube material has a significant impact on the outer diameter tolerance. The tubes are usually produced from steel billets, which are then hot - rolled or cold - drawn to the desired raw dimensions. The precision of these primary forming processes affects the starting point for the honing operation. Any variations in the raw tube's outer diameter will need to be accounted for during the subsequent manufacturing steps.
Honing itself is a finishing process, but it can also affect the outer diameter. Although honing is mainly focused on the inner surface, the forces applied during the process can have a negligible but measurable effect on the outer diameter. Quality control measures during manufacturing, such as continuous monitoring of the diameter using precision measuring tools, are essential to maintain tight tolerances.
Material Properties
The properties of the steel used in BKS Honed Tubes can also influence the outer diameter tolerance. Different grades of steel have different thermal expansion coefficients, which means they expand and contract at different rates depending on the temperature. This can cause dimensional changes in the tube's outer diameter, especially in applications where the operating temperature fluctuates significantly.
Additionally, the hardness and ductility of the material can affect how it responds to the machining forces during manufacturing. Softer materials may be more prone to deformation, while harder materials may require more aggressive machining, which can introduce additional variables in controlling the outer diameter.
Application Requirements
The specific application for which the BKS Honed Tubes are intended also dictates the acceptable outer diameter tolerance. In high - precision applications, such as aerospace or medical devices, the tolerance requirements can be extremely tight, often in the range of a few micrometers. On the other hand, in less critical applications like some general industrial machinery, a slightly wider tolerance may be acceptable, which can also reduce manufacturing costs.
Standard Tolerance Ranges
The standard tolerance ranges for the outer diameter of BKS Honed Tubes can vary depending on industry standards and the specific requirements of the customer. Generally, for tubes with outer diameters up to 50 mm, the tolerance can be within ±0.05 mm to ±0.1 mm. For larger diameter tubes, say from 50 mm to 200 mm, the tolerance may increase to ±0.1 mm to ±0.2 mm.
It's important to note that these are just general guidelines, and the actual tolerance can be adjusted based on the customer's needs. Some industries may follow specific standards such as ISO (International Organization for Standardization) or ASTM (American Society for Testing and Materials) standards for tube dimensions and tolerances.
Importance of Meeting Outer Diameter Tolerances
Maintaining the correct outer diameter tolerance of BKS Honed Tubes is of utmost importance for several reasons.
Compatibility and Assembly
When used in an assembly, such as a hydraulic cylinder, the outer diameter of the honed tube must match precisely with the mating components. If the outer diameter is too large, the tube may not fit into the housing or other parts of the assembly, leading to difficulties in installation and a potential misalignment of the entire system. Conversely, if the outer diameter is too small, there may be gaps, which can cause leaks in hydraulic systems or compromises in the structural integrity of the assembly.
Performance and Efficiency
In hydraulic systems, the outer diameter tolerance affects the performance and efficiency of the cylinders. A tube with an incorrect outer diameter can lead to uneven pressure distribution, which can cause premature wear of seals and other components. This not only reduces the lifespan of the hydraulic system but also results in decreased efficiency and potential hydraulic failures.
Our Capabilities as a BKS Honed Tubes Supplier
As a BKS Honed Tubes supplier, we have a state - of - the - art manufacturing facility equipped with the latest technology and machinery to ensure precise control of the outer diameter tolerance. Our team of experienced engineers and technicians uses advanced measuring equipment, such as laser micrometers and coordinate measuring machines (CMM), to monitor the outer diameter during the manufacturing process.

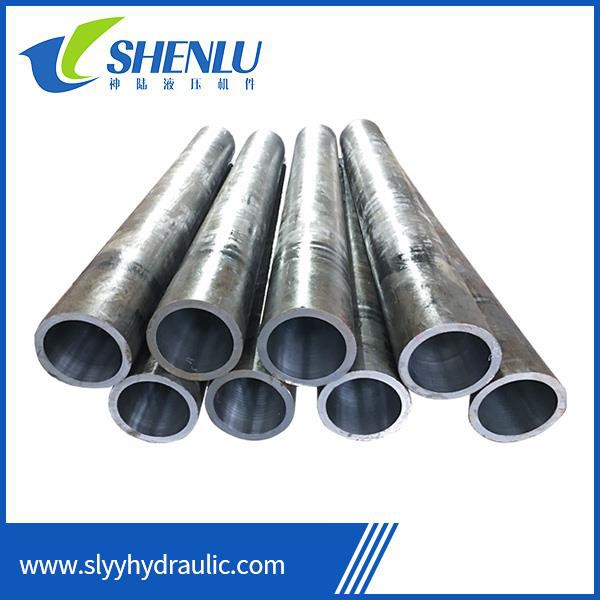

We also offer a wide range of BKS Honed Tubes, including Hydraulic Cylinder Tubes, Imperial Honed Tubes, and Skived and Roller Burnished Tubes. Each type of tube is manufactured to the highest quality standards, with strict control over the outer diameter tolerance to meet the diverse needs of our customers.
Contact Us for Your BKS Honed Tubes Needs
Whether you are looking for standard BKS Honed Tubes with specific outer diameter tolerances or a custom - made solution for a unique application, we are here to help. Our team of experts can work with you to understand your requirements and provide the best possible product.
If you are interested in learning more about our BKS Honed Tubes or would like to discuss a potential purchase, please feel free to reach out to us. We are committed to providing excellent customer service and high - quality products that meet your exact specifications.
References
- Metals Handbook: Properties and Selection: Irons, Steels, and High - Performance Alloys, ASM International
- Precision Engineering: Principles and Practice, CRC Press
- ISO Standards for Tubular Products
- ASTM Standards for Steel Tubes
