How to simulate the working conditions of hydraulic cylinder tubes?

Simulating the working conditions of hydraulic cylinder tubes is a crucial aspect for both manufacturers and users. As a supplier of Hydraulic Cylinder Tubes, I understand the significance of accurately replicating these conditions to ensure the quality and performance of our products. In this blog, I will delve into the various methods and considerations for simulating the working conditions of hydraulic cylinder tubes.

Understanding the Working Conditions of Hydraulic Cylinder Tubes

Before we can simulate the working conditions, it is essential to understand what these conditions entail. Hydraulic cylinder tubes are subjected to a variety of forces and environmental factors during their operation. These include pressure, temperature, friction, and wear.

Pressure is one of the most critical factors. Hydraulic cylinders operate under high pressures, which can vary depending on the application. For example, in heavy - duty construction equipment, the pressure can reach several thousand pounds per square inch (psi). Temperature is another important factor. Hydraulic systems can generate a significant amount of heat during operation, and the cylinder tubes need to withstand these temperature fluctuations without losing their mechanical properties.

Friction and wear occur due to the movement of the piston inside the cylinder tube. The piston seals rub against the inner surface of the tube, and over time, this can cause wear and tear. Additionally, the presence of contaminants in the hydraulic fluid can exacerbate the wear problem.

Methods of Simulating Working Conditions

Pressure Simulation

To simulate the pressure conditions, we can use a hydraulic test bench. This bench is equipped with a pressure - generating system that can replicate the high pressures experienced in real - world applications. We can adjust the pressure levels according to the specific requirements of the hydraulic cylinder tubes. For example, if the tubes are designed for a particular type of industrial machinery, we can set the pressure to match the operating pressure of that machinery.

The test bench also allows us to monitor the performance of the cylinder tubes under pressure. We can measure parameters such as deformation, leakage, and fatigue life. By subjecting the tubes to different pressure cycles, we can determine their long - term durability and reliability.

Temperature Simulation

Temperature simulation can be achieved using a temperature - controlled chamber. This chamber can be set to different temperature ranges to mimic the operating temperatures of the hydraulic system. For instance, in a cold - climate application, the chamber can be cooled to sub - zero temperatures, while in a high - temperature industrial environment, the chamber can be heated to several hundred degrees Celsius.

We can use sensors to monitor the temperature inside the chamber and on the surface of the cylinder tubes. This helps us understand how the tubes respond to temperature changes and whether they can maintain their structural integrity under different thermal conditions.

Friction and Wear Simulation

To simulate friction and wear, we can use a wear - testing machine. This machine typically consists of a rotating or reciprocating element that rubs against the inner surface of the cylinder tube. We can control the load, speed, and duration of the test to replicate the real - world wear conditions.

In addition, we can introduce contaminants into the test environment to simulate the presence of dirt, dust, and other particles in the hydraulic fluid. This helps us evaluate the resistance of the cylinder tubes to abrasive wear.

Importance of Simulation for Our Products

As a Hydraulic Cylinder Tubes supplier, simulation plays a vital role in ensuring the quality of our products. By accurately simulating the working conditions, we can identify potential problems early in the design and manufacturing process. This allows us to make necessary improvements to the materials, manufacturing processes, and design of the cylinder tubes.

For example, if the simulation reveals that a particular type of tube experiences excessive wear under high - pressure and high - temperature conditions, we can explore alternative materials or surface treatments to enhance its wear resistance. Simulation also helps us optimize the performance of our products. By fine - tuning the design based on the simulation results, we can improve the efficiency and reliability of the hydraulic cylinders.

Our Product Range and Their Applicability in Simulated Conditions

We offer a wide range of hydraulic cylinder tubes, including Honed Id Tubing, Casting Steel Cylinder Tubes, and Welded Carbon Steel Pipe.

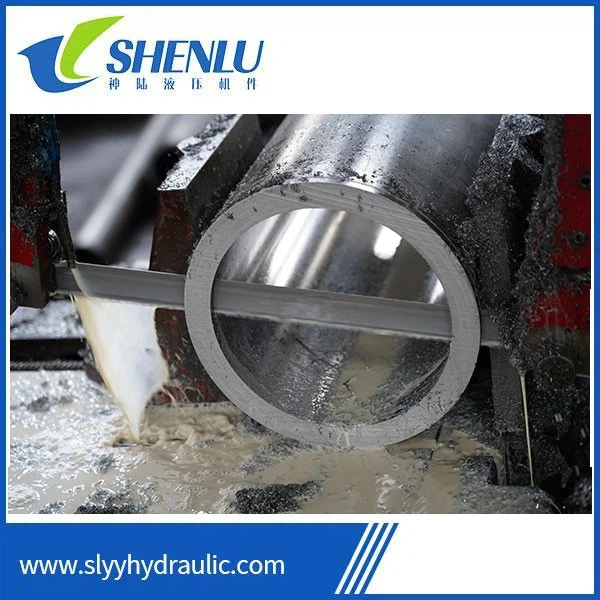

Honed Id Tubing is known for its high - precision inner diameter, which provides a smooth surface for the piston to move. This reduces friction and wear, making it suitable for applications where high - performance and long - life are required. Our simulation tests have shown that Honed Id Tubing can withstand high pressures and temperature variations without significant deformation or wear.

Casting Steel Cylinder Tubes are made from high - quality cast steel, which offers excellent strength and durability. These tubes are ideal for heavy - duty applications where high pressures and large loads are involved. Through simulation, we have verified that Casting Steel Cylinder Tubes can maintain their structural integrity under extreme working conditions.

Welded Carbon Steel Pipe is a cost - effective option for many hydraulic applications. Our simulation studies have demonstrated that this type of pipe can provide reliable performance in a wide range of working conditions. The welding process is carefully controlled to ensure the strength and integrity of the pipe.

Conclusion and Call to Action

Simulating the working conditions of hydraulic cylinder tubes is an essential step in ensuring their quality, performance, and reliability. At our company, we are committed to using the latest simulation techniques to develop and manufacture high - quality hydraulic cylinder tubes.

If you are in the market for hydraulic cylinder tubes, we invite you to contact us for a detailed discussion about your specific requirements. Our team of experts is ready to assist you in selecting the most suitable products for your applications. Whether you need Honed Id Tubing, Casting Steel Cylinder Tubes, or Welded Carbon Steel Pipe, we have the solutions to meet your needs.

References

• Smith, J. (2018). Hydraulic System Design and Analysis. Publisher: ABC Press.
• Johnson, R. (2019). Materials for Hydraulic Components. Journal of Hydraulic Engineering, 25(3), 123 - 135.
• Brown, T. (2020). Wear and Fatigue in Hydraulic Cylinders. Proceedings of the International Conference on Hydraulic Systems, 45 - 52.
