What is the friction coefficient of precision honed tubes?

The friction coefficient of precision honed tubes is a crucial parameter that significantly impacts their performance in various applications. As a supplier of precision honed tubes, I have witnessed firsthand how understanding this coefficient can make a substantial difference in the efficiency and longevity of hydraulic systems and other machinery.

Understanding the Friction Coefficient

The friction coefficient is a measure of the resistance to relative motion between two surfaces in contact. In the context of precision honed tubes, it refers to the interaction between the inner surface of the tube and the piston or rod that moves within it. A lower friction coefficient indicates smoother movement and less energy loss due to friction.

There are two main types of friction coefficients: static and kinetic. The static friction coefficient applies when the surfaces are at rest and an external force is required to initiate motion. Once the motion starts, the kinetic friction coefficient comes into play. In precision honed tubes, both coefficients are important. A low static friction coefficient ensures easy start - up of the piston or rod, while a low kinetic friction coefficient allows for consistent and efficient operation during continuous movement.

Factors Affecting the Friction Coefficient of Precision Honed Tubes

1. Surface Finish: The surface finish of a precision honed tube is one of the most critical factors influencing the friction coefficient. Honing is a process that creates a precise and smooth surface with a specific pattern of micro - grooves. These grooves can help retain lubricants, reducing direct contact between the tube and the moving part. A smoother surface generally results in a lower friction coefficient. For example, a well - honed tube with a surface roughness (Ra) in the range of 0.2 - 0.8 micrometers can provide excellent lubrication retention and reduced friction compared to a tube with a coarser finish.
2. Lubrication: The type and quality of lubricant used play a vital role in determining the friction coefficient. Lubricants form a thin film between the tube and the moving part, separating the surfaces and reducing direct contact. Different lubricants have different viscosities and additives, which can affect their ability to reduce friction. For instance, high - quality hydraulic oils with anti - wear additives can significantly lower the friction coefficient in precision honed tubes used in hydraulic systems.
3. Material Properties: The materials of the tube and the moving part also impact the friction coefficient. For precision honed tubes, common materials include carbon steel, stainless steel, and alloy steels. Each material has its own surface properties, hardness, and chemical composition, which can influence friction. For example, stainless steel tubes may have a different friction coefficient compared to carbon steel tubes due to their different surface characteristics and corrosion resistance.
4. Operating Conditions: The operating conditions, such as temperature, pressure, and speed, can affect the friction coefficient. Higher temperatures can cause the lubricant to thin out, reducing its effectiveness in reducing friction. Similarly, high pressures can increase the contact force between the surfaces, potentially increasing friction. High - speed operation may also lead to increased frictional heat generation, which can further affect the lubricant's performance and the overall friction coefficient.

Measuring the Friction Coefficient of Precision Honed Tubes

Accurately measuring the friction coefficient of precision honed tubes is essential for ensuring their performance. There are several methods available for measuring friction coefficients:

1. Tribometer Testing: A tribometer is a device used to measure friction and wear between two surfaces. In the case of precision honed tubes, a tribometer can be used to simulate the actual operating conditions of the tube and the moving part. By applying a known force and measuring the resulting frictional force, the friction coefficient can be calculated.
2. In - Situ Testing: In - situ testing involves measuring the friction coefficient directly in the actual application. This method provides real - world data but can be more challenging to control and measure accurately. For example, in a hydraulic cylinder, sensors can be installed to measure the force required to move the piston, allowing for the calculation of the friction coefficient under actual operating conditions.

Importance of a Low Friction Coefficient in Precision Honed Tubes

1. Energy Efficiency: A low friction coefficient means less energy is wasted in overcoming friction. In hydraulic systems, this can result in significant energy savings, especially in applications where the system operates continuously. For example, in large - scale industrial machinery, reducing friction can lead to lower power consumption and reduced operating costs.
2. Component Longevity: Reduced friction also means less wear and tear on the tube and the moving part. This extends the service life of the components, reducing the frequency of maintenance and replacement. In applications where downtime is costly, such as in manufacturing plants or construction equipment, the increased longevity of precision honed tubes can have a substantial impact on productivity.
3. System Performance: A low friction coefficient ensures smooth and consistent operation of the system. In hydraulic cylinders, it allows for precise control of the piston movement, resulting in better performance and accuracy. This is particularly important in applications where precise positioning is required, such as in robotics or aerospace systems.

Our Precision Honed Tubes and Their Friction Coefficients

As a supplier of precision honed tubes, we take great care in ensuring that our products have optimal friction coefficients. Our honing process is carefully controlled to achieve the desired surface finish and micro - groove pattern. We work closely with lubricant manufacturers to recommend the best lubricants for our tubes, taking into account the specific application and operating conditions.

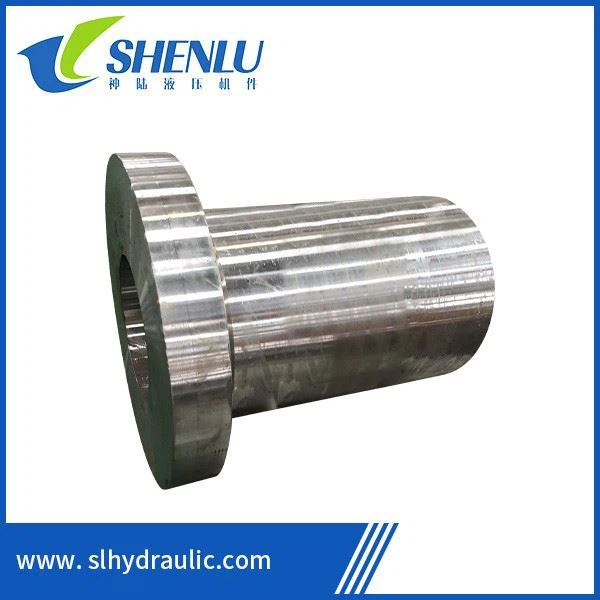

We offer a wide range of precision honed tubes, including High Precision Hydraulic Cylinder Tubes, Metric Round Honed Tube, and Skiving and Roller Burnishing Tubes. Each type of tube is designed to meet the specific requirements of different applications, with a focus on providing low friction coefficients and excellent performance.

Contact Us for Your Precision Honed Tube Needs

If you are looking for high - quality precision honed tubes with optimal friction coefficients, we are here to help. Our team of experts can provide you with detailed information about our products, including friction coefficient data and recommendations for lubrication and application. Whether you are in the hydraulic, automotive, or aerospace industry, we have the right solution for your needs. Contact us today to discuss your requirements and start a procurement negotiation.

References

• ASTM International. "Standard Test Methods for Measuring Friction and Wear Properties of Materials." ASTM D5183 - 19.
• Bhushan, Bharat. "Principles and Applications of Tribology." John Wiley & Sons, 2013.
• Hamrock, Bernard J., et al. "Fundamentals of Fluid Film Lubrication." CRC Press, 2004.
