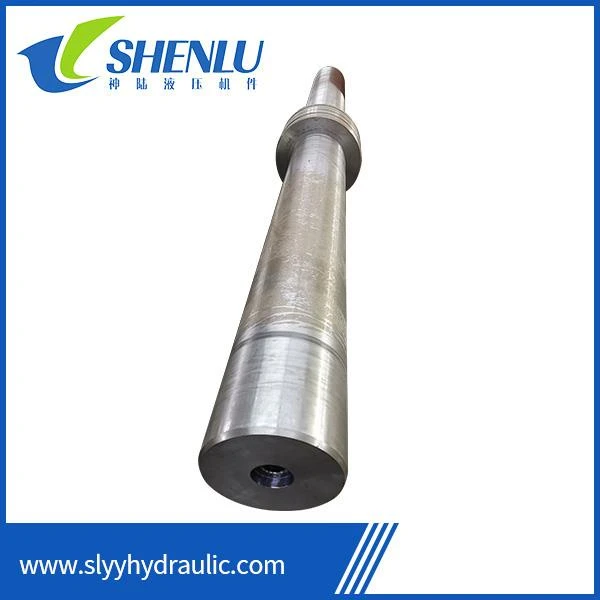

Pneumatic Piston Rods
Piston rod is usually manufactured from carbon steel round bars. We use high precision centerless grinding and polishing methods to produce piston rods, and then send to chrome plating factories for plating. Our usual plating thickness is 20 microns if you don’t have any other requirements.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Piston rod is usually manufactured from carbon steel round bars. We use high precision centerless grinding and polishing methods to produce piston rods, and then send to chrome plating factories for plating. Our usual plating thickness is 20 microns if you don’t have any other requirements.The chrome plating layer provides corrosion resistance and a highly reflective appearance. Chrome plated round bar is specifically designed to be used for most piston rod applications in hydraulic and pneumatic cylinders.
Specification
Φ6 | Φ8 | Φ10 | Φ12 | Φ16 | Φ20 | Φ22 | Φ25 |
Φ28 | Φ30 | Φ32 | Φ35 | Φ36 | Φ38 | Φ40 | Φ45 |
Φ50 | Φ55 | Φ60 | Φ70 | Φ75 | Φ80 | Φ85 | Φ90 |
Φ100 | Φ105 | Φ110 | Φ120 | Φ125 | Φ130 | Φ140 | Φ150 |
Φ160 | Φ170 | Φ180 | Φ190 | Φ200 | Φ220 | Φ250 | Φ300 |
Φ350 | Φ400 | Φ450 | Φ500 | Φ550 | Φ600 | Φ650 | Φ700-1600 |
External Diameter Tolerance:Our chrome plated bars are supplied with tolerance f7, f8, f9 on customers’ request.
Hard Chrome Plated Thickness:Min. 20Microns (0.0008″), other chrome plated thickness of hydraulic cylinder rod is on customers’ requests. The chrome plated round bar should pass the salt spray tested at least 48 hours.
Supply Length:Our factory produce chrome plated rod with random length or fixed length up to 16 meters.
Application: Our piston rods are widely used in hydraulic cylinders, air cylinders and shack absorbers directly. And also they are used in printing and dyeing textile equipments, guide rods for liner motions, pressure die casting machines, injection molding machines and other equipments.
Original: Jiangsu, China
Certification: ISO9001, QMS, etc.
Price: Negotiable
Material: E 355, ST 52, ST 37.4, 27SiMn, CK45, 40Cr, etc.
Payment term: TT in advance
Delivery date: 50 days for one container, if our stock can meet your requirements, we can deliver within ten days.
Packing: standard package or according to your requirements
Market: Middle East, Africa, Asia, South America, etc.
MOQ: for common materials and sizes, we don’t need MOQ
Our services
Pre-sale services:
1. Providing professional technical support.
2.Send the product catalog and instruction manual.
3.If you have any question please contact us online or send us email, we promise we will give you a reply within 12 hours!
4.Personal call or visit is warmly welcome.
Sale of services:
1.We promise honest and fair service. It's our pleasure to serve you as your purchasing consultant.
2.We guarantee punctuality, quality and quantities strictly implement the terms of contract.
After-sales service:
1.24-hour telephone service.
2.A large stock of different sizes of piston rods.
FAQ
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, and we have builded up our company since 2006.
2. Q: What is your minimum order quantity, can you send me samples?
A: For common material and sizes, we don’t need minimum order quantity and samples are no problem for us. However, we can also send you catalog and warmly welcome you to come and visit our company.
3. Q: Can I mix different models in one container?
A: Yes, of course, different sizes can be mixed in one container for common materials.
4. Q: What are your terms of payment?
A: T/T in advance.
5. Q: How you arrange shipment?
A: By sea, by train, by air or by express.
